Plastic Products

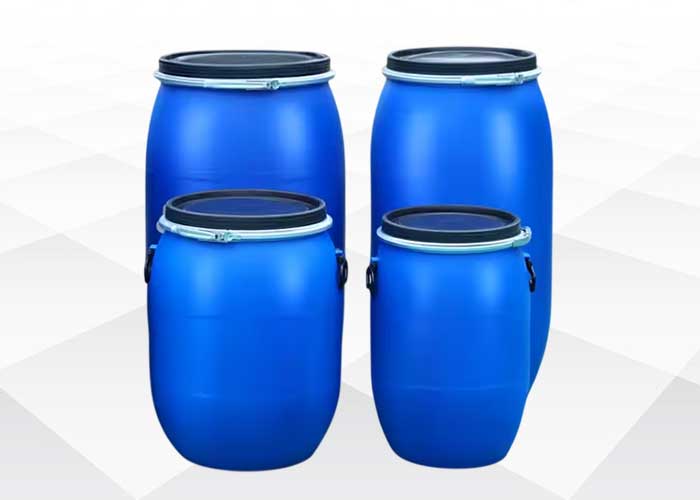

Open Top Drum

Size: 20Ltr, 35Ltr, 40Ltr, 50Ltr, 60Ltr, 80Ltr, 100Ltr, 120Ltr, 150Ltr, 210Ltr, 235Ltr

World-standard Open Top Drum design featuring a simple closing/opening mechanism with snap-fit clamping ring. Excellent drop impact and stacking strength.

Available Sizes: 20Ltr, 35Ltr, 40Ltr, 50Ltr, 60Ltr, 80Ltr, 100Ltr, 120Ltr, 150Ltr, 210Ltr, 235Ltr

World-standard Open Top Drum design featuring a simple closing/opening mechanism with snap-fit clamping ring. Excellent drop impact and stacking strength.

Features – International Open Top (IOT) Drums

World-standard Open Top Drum design
Simple closing/opening mechanism with snap-fit clamping ring
Excellent drop impact and stacking strength
Leakproof, Odourless and non-toxic, best for food products
Right sizes for optimum export container utilization
Conforms to IS:6312 and UNO/IMDG Code

Features – Half Open Top (HOT) Drums

Suited for packing liquid, semi-solid and viscous products
Wide (9″) opening for quick filling
2 XL-Rings (Top & Bottom) for easy handling
Special top profile for complete emptying
Economical alternate to Open Top Drums

Capacity & Dimensions (in mm)

Model	Size(ltrs)	Design	Dia/L x W	Height
IOT 25	25	Round	320	473
COT 25	25	Round	320	480
IOT 30	30	Round	320	520
IOT 35	35	Round	320	565
COT 35	35	Round	320	542
IOTC 40	40	Conical	370 x 295	555
COT 40	40	Round	320	600
IOT 50	50	Rect.	385 x 330	645
IOTR 50	50	Round	380	550
IOT 60	60	Rect.	385 x 330	710
IOTR 60	60	Round	380	660
IOT 80	80	Round	595	-
COT 80	80	Round	450	690
IOT 120	120	Round	505	810
IOT 150	150	Round	505	970
IOT C 150	150	Conical	540	905
IOT 210	210	Round	590	910
IOT 220	220	Round	590	940
IOT 235	235	Round	590	980
FOT 220 (Vanguard)	220	Round	585	960
HOT 210	210	Round	590	910

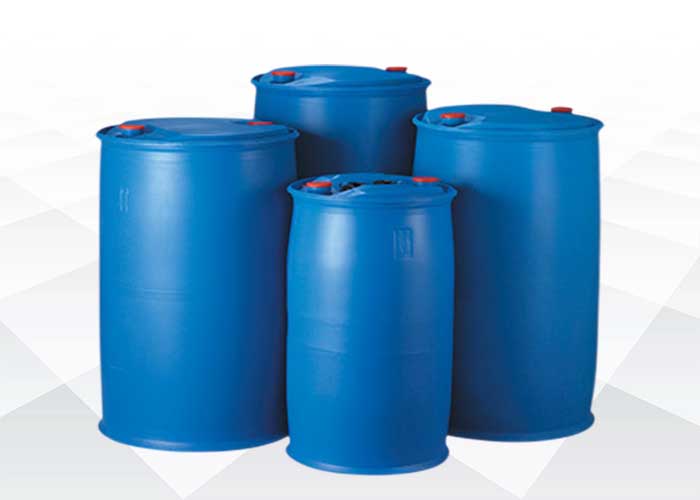

Narrow Mouth Container

Size: 25Ltr, 35Ltr, 50Ltr, 100Ltr, 210Ltr, 235Ltr, 250Ltr

Internationally acceptable design for complete emptying with no residue. Features improved sealing arrangements for 100% leak proof performance.

Available Sizes: 25Ltr, 35Ltr, 50Ltr, 100Ltr, 210Ltr, 235Ltr, 250Ltr

Internationally acceptable design for complete emptying with no residue. Features improved sealing arrangements for 100% leak proof performance.

Salient Features

Complete Emptying – No residue, no wastage.
Internationally acceptable design.
Extended XL-Ring for easier handling.
Optimum Utilisation of shipping container.
Improved sealing arrangements – 100% leak proof.
Varying options for cost effectiveness.
Wide Range. UN approved & quality endorsed by MIPI.

XL-Ring Drums of 100 – 250 litre Capacity

Model	Capacity	Dia (mm)	Height (mm)	Opening (mm)
INM100	100	483	710	2 x 50
INM120	120	483	795	2 x 50
INM210	210	590	882	2 x 50
INM210N	220	585	940	2 x 50
INM235	235	585	1010	2 x 50
INM250	250	590	1020	2 x 50

Rectangle & Rocket Containers Features

Optimum space utilization – side handles could be tucked-in.
Zero leakage – sophisticated screw cap with integrated sealing saucer.
Venting / degasification caps available. 100% drainable.
Pilfer evident sealing arrangement.
Stackable with or without pallets.

Model	Capacity (Ltrs)	Design	L x W / Dia (mm)	Height (mm)
INM20	20	Rectangle	275 x 245	395
INMR20	20	Round	300	378
INM25	25	Rectangle	320 x 300	365
INM30	30	Rectangle	320 x 290	430
INM30	30	Rocket	328 x 290	485
INM35	35	Rectangle	320 x 290	475
INMR35	35	Rocket	328 x 290	560
INM40	40	Rectangle	335 x 295	525
INM50	50	Rectangle	395 x 330	565
INM60	60	Rectangle	395 x 330	640

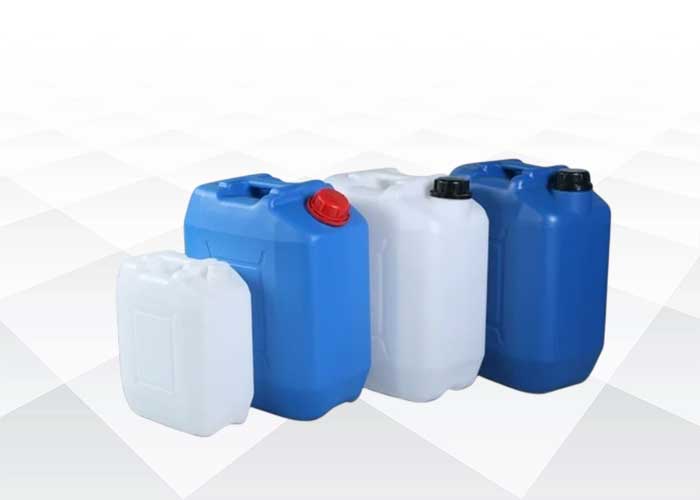

Jerry Can

Size: 5Ltrs, 10Ltrs, 35Ltrs

High-quality Jerry Cans designed for industrial and commercial usage, ensuring durability and safe transport of liquids.

Square Container

Size: 20Ltrs Square, 25Ltrs Square, 30Ltrs Square, 35Ltrs Square, 50Ltrs Rocket

Versatile square containers available in multiple sizes. Engineered for stability and space-efficient storage.

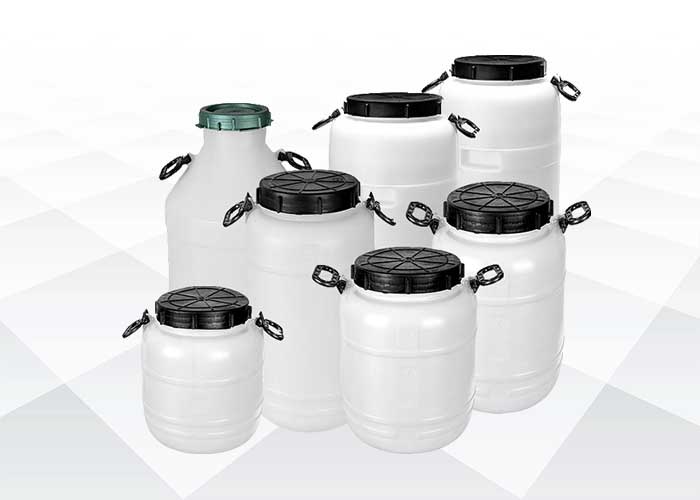

Wide Mouth Range Drum

Size: 22Ltr, 35Ltr, 55Ltr, 80Ltr, 100Ltr

Drums with wide openings for easy filling and discharge of semi-solid or viscous products.

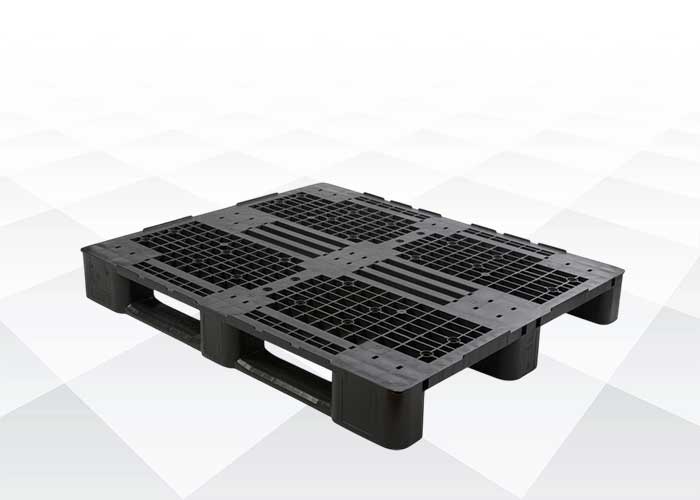

Pallet

Size: One time used

Cost-effective and versatile pallets featuring robust handgrips and semi-perforated walls. Ideal for warehousing.

Available Sizes: One time used

Cost-effective and versatile pallets featuring robust handgrips and semi-perforated walls. Ideal for warehousing.

Features

Cost effective and versatile
Bottom edges
Robust handgrip
Semi perforated long walls

Usage

Warehousing

Technical Details

Model	Dimensions (mm)	Static Load (Kg)	Dynamic Load (Kg)	Racking Load (Kg)
LSR without sheet	1200 x 100 x 145	4500	1500	1250
LSR with sheet	1200 x 1000 x 150	4500	1500	1250
SSR without sheet	1200 x 100 x 145	4500	1500	1250
SSR with sheet	1200 x 1000 x 150	4500	1500	1250

IBC (Intermediate bulk containers)

Size: 1000Ltr

GNX Intermediate Bulk Containers are designed for efficient performance even in rugged terrains and rough handling. Safe and Secure.

Available Sizes: 1000Ltr

GNX Intermediate Bulk Containers are designed for efficient performance even in rugged terrains and rough handling. Safe and Secure.

GNX Intermediate Bulk Container are designed with exclusive features for efficient performance even in rugged terrains and rough handling.

Safe and Secure

Built tough and tested to meet stringent testing norms. The IBCs carry most hazardous and precious chemicals across long stretches of land and water. Conforms to IMDG Code & ADR regulations.

Technical Specifications

Description	GNX® Bulktainer – PP	GNX® Bulktainer – CP	GNX® Bulktainer – WP
Dimension (LXWXH) (mm)	1200 x 1000 x 1175	1200 x 1000 x 1155	1200 x 1000 x 1155
Pallet Type	Plastic (PE)	Composite Steel	Wooden (ISPM 15)
Useful Volume (Ltr)	1000 Ltr	1000 Ltr	1000 Ltr
Filling Opening	DN 150	DN 150	DN 150

Material Options

GNX® Bulktainer – PP: Single piece all plastic pallet, rust-proof, ideal for multi-trip usage.
GNX® Bulktainer – CP: Composite pallet with PE connectors, rust and corrosion-proof.
GNX® Bulktainer – WP: Economical & reliable ISPM — 15 heat treated wooden pallet.

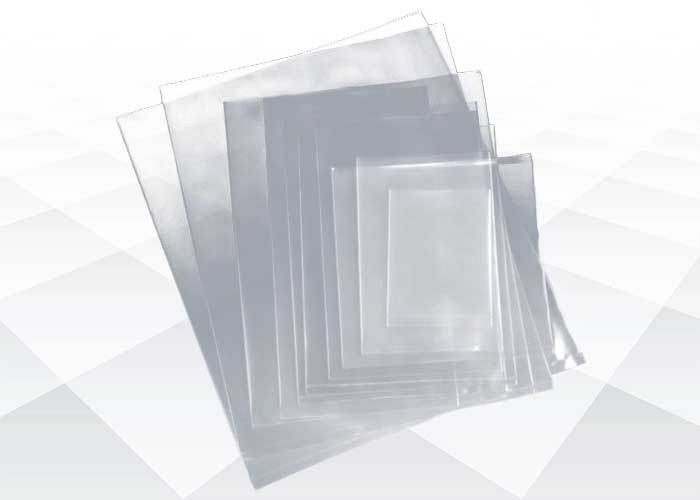

HDPE Bag

Size: As Per Customer Requirement

High-Density Polyethylene bags available in various sizes and specifications as per customer requirements.
